ANSI C29 vs IEC 60383: How North American and International Insulator Standards Differ — and How to Specify Both

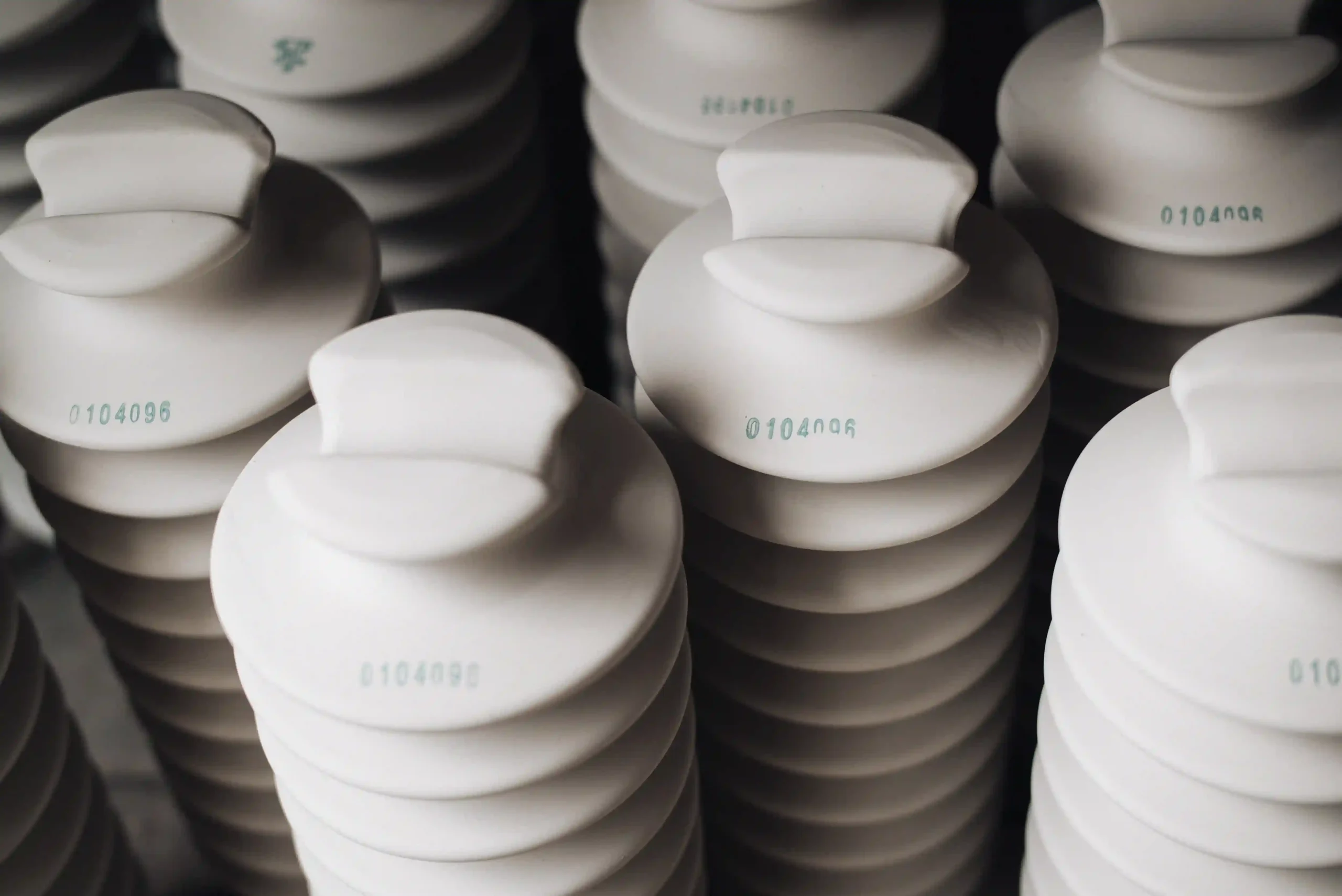

ANSI C29 is the North American family of standards for overhead-line and substation insulators, published by the National Electrical Manufacturers Association (NEMA) and accredited by ANSI. It covers product types and test methods in a single, type-specific document set (C29.1 general tests, C29.2 suspension, C29.5/C29.6 apparatus, C29.7 high-voltage line post, C29.8 apparatus cap-and-pin, C29.9 station post, C29.11/C29.13 composite suspension, C29.17/C29.18 composite line post, C29.19 station post composite). IEC 60383, by contrast, is a horizontal test standard for ceramic and glass insulators above 1 kV, and it is part of a wider IEC family: IEC 60168 (indoor/outdoor post insulators of ceramic or glass), IEC 61952 (composite line post insulators), IEC 62231 (composite station post), and IEC 60815 (creepage selection for polluted environments). The two systems are not one-to-one replacements — ANSI C29 bundles product type and test in one document, while IEC splits product family from test method. Buyers writing a dual-standard specification must therefore map across both axes, not just translate part numbers.

1. What Each Standard Family Covers

The first source of confusion in cross-region procurement is scope. ANSI C29 documents are product-type-specific and self-contained: each document defines the product class, the routine and design tests, and the rating system in one place. IEC documents are layered: a horizontal test standard (60383) defines how to test, and product standards (60168, 61952, 62231) define what the product is and which subset of tests applies.

INFERRED — the mapping above reflects the most common pairing used in EPC bid books; verify against the specific standard edition cited in your project specification.

2. Test Method Differences That Actually Bite

For routine-test buyers, the two systems agree on intent and disagree on procedure. The four areas where mis-specification most often produces an unusable test report are below.

2.1 Power-frequency wet withstand vs lightning impulse

ANSI C29.1 defines low-frequency dry / wet flashover and critical impulse flashover (CFO) at standard test atmosphere. IEC 60383 specifies power-frequency wet withstand (1 minute) and lightning impulse withstand (1.2/50 µs, both polarities) at standard reference atmosphere. The voltage shapes are equivalent in concept, but the pass criteria differ: ANSI uses statistical flashover values; IEC uses guaranteed withstand values. A unit that passes a stated ANSI CFO at, say, 200 kV will not automatically pass an IEC LIWL of 200 kV — the LIWL is a withstand floor, the CFO is a 50 % flashover mid-point.

2.2 Mechanical rating: M&E vs SML / SFL

ANSI C29.2 rates suspension insulators by M&E (Mechanical and Electrical) strength, the load at which the unit must withstand 1 minute under combined mechanical and electrical stress. IEC 61109 / 60383 use SML (Specified Mechanical Load) for composite long-rod insulators and SFL (Specified Failing Load) for cap-and-pin. Numerically, an M&E 70 kN unit and an SML 70 kN unit are not directly interchangeable: M&E is a withstand point under coupled stress, SML is a routine-test load typically equal to 50 % of the average ultimate failing load. INFERRED — the 50 % factor reflects common IEC 61109 practice; the exact ratio is set by the product standard, verify before specifying.

2.3 Creepage definition

Both systems measure creepage in mm/kV (phase-to-earth), but the reference voltage differs. North American practice often quotes creepage against system phase-to-phase voltage; IEC 60815-1 explicitly uses the highest voltage of the equipment U_m (phase-to-earth, in kV r.m.s.). Specify which reference you mean, or your "31 mm/kV heavy pollution" spec will be off by a factor of √3.

2.4 Pollution classification

ANSI/IEEE pollution levels are typically described qualitatively (very light / light / moderate / heavy / very heavy) and tied to ESDD/NSDD ranges informally. IEC 60815-1 defines five classes (a / b / c / d / e — very light to very heavy) with explicit ESDD and NSDD bands and corresponding unified specific creepage distances (USCD). For pollution-sensitive projects (coastal MENA, desert), the IEC 60815 framework is the more deterministic reference even when the rest of the specification is ANSI-based.

3. Key Numerical Differences You Will Hit in a Bid Book

4. When to Specify Which

• Pure North American grid (US, Canada, parts of Latin America): ANSI C29 is the default. IEEE 1313 governs insulation coordination; IEEE Std 4 governs HV testing.
• IEC-aligned grids (most of MENA, Europe, Africa, South and Southeast Asia, Australia): IEC 60383 family + IEC 60815 for creepage. Local national codes (e.g. SASO in Saudi Arabia, ENEC in EU) typically reference IEC.
• EPC contracts with mixed end-customers: Write the bid as IEC-primary with ANSI cross-references; require dual type-test reports from the supplier (one per system) rather than asking the supplier to claim equivalence in a single report.
• Utility retrofit in an IEC country with installed ANSI fittings: Specify IEC 60383 electrical performance + ANSI C29 mechanical interface (ball-and-socket / clevis-tongue dimensions per IEC 60120 and ANSI C29.2 cross-reference table).

5. Five Dual-Compliance Pitfalls

1. Single product marking that claims both standards without separate test reports. A unit must hold a complete type-test report under each cited standard. A single report stamped "equivalent to" is not acceptance evidence.
2. Creepage spec that mixes phase-phase and phase-earth references. Always cite which reference voltage. The √3 factor is the single most common source of under-creeped insulators in MENA bid bookings.
3. M&E vs SML treated as equal numbers. They are not. A 70 kN SML unit may have an effective M&E only of approximately 60–65 kN depending on how the supplier characterised the average failing load (INFERRED, manufacturer-specific).
4. End-fitting interface drift. ANSI C29.2 cap-and-pin couplings (e.g. class 52-3) match IEC 60120 ball-and-socket dimensions in most cases, but socket pin diameter tolerances differ. Specify both the IEC class designation and the ANSI ball/pin code.
5. Routine QC sampling under different sampling plans. ANSI C29.1 and IEC 60383-1 use different AQL tables and sampling lot definitions. The supplier's factory routine plan must explicitly satisfy whichever sampling plan you cite — do not assume one covers the other.

6. Buyer Checklist Before Issuing the RFQ

• State the primary standard (ANSI C29.x or IEC 60383 / 60168 / 61952 / 62231) and which clauses are mandatory vs informative.
• Cite IEC 60815 class (a–e) explicitly for any project with pollution exposure.
• Specify mechanical rating in the term native to the primary standard (M&E or SML), not both.
• Cite reference voltage (phase-phase or phase-earth) every time you write a creepage figure.
• Require the type-test report under the cited standard — by name, edition, and clause numbers.
• For dual-compliance projects, list the two test reports as separate deliverables in the bid book.
• Specify end-fitting in both the ANSI ball/pin code and the IEC 60120 class.
• State the routine QC sampling plan by reference (IEC 60410 / ISO 2859 / ANSI Z1.4) — these are not all the same.
